Hexagonal Vertical Solar Urban Lighting - Artemis Series
-
-
| Parameters | |
| LED Chips | Philips Lumileds 5050 |
| Solar Panel | Monocrystalline silicon photovoltaic panels |
| Color Temperature | 4500-5500K (2500-5500K Optional) |

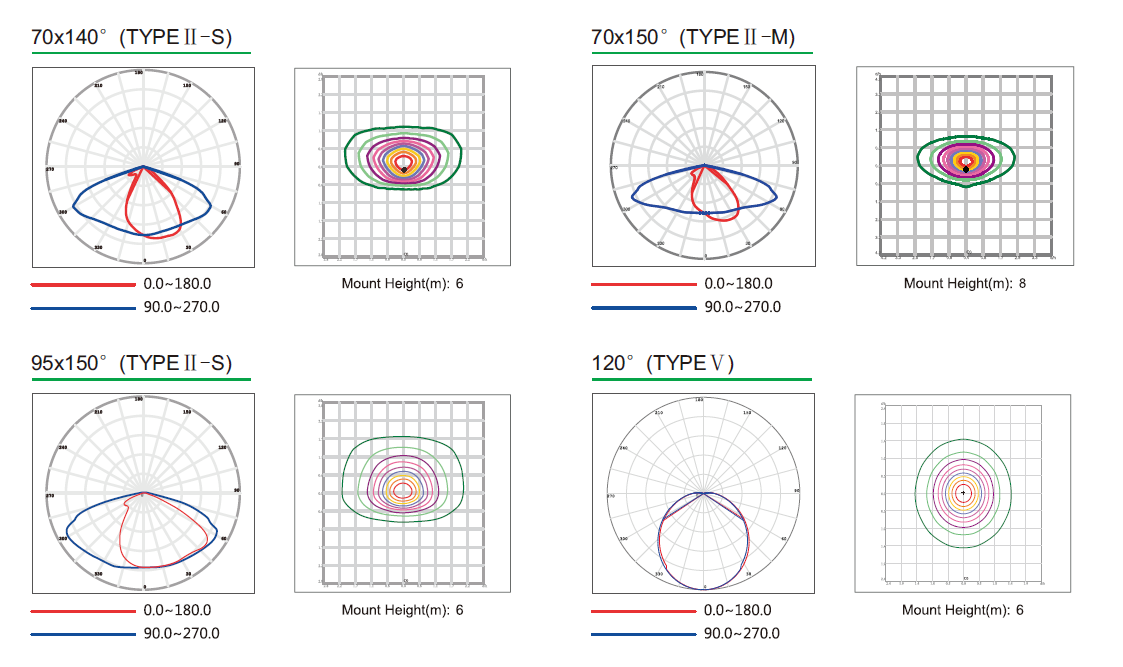

| Photometrics | TYPEⅡ-S, TYPEⅡ-M, TYPEⅤ |
| IP | IP66 |
| IK | IK08 |
| Battery | LiFeP04 battery |
| Work Time | One consecutive rainy day |
| Solar Controller | MPPT Controller |
| Dimming / Control | Timer Dimming/Motion Sensor |
| Housing Material | Aluminum alloy |
| Work Temperature | -20°C ~ 60°C / -4°F~ 140°F |
| Mount Kits Option | Standard |
| Lighting status | Check the details in the spec sheet |
|
Model |
Power |
Solar Panel |
Battery |
Efficacy(IES) |
Lumens |
Dimension |
Net Weight |
|
EL-UBFTⅡ-20 |
20W |
100W/18V 2pcs |
12.8V/42AH |
140lm/W |
2,800lm |
470×420×525mm(LED) |
8.2 KG |
FAQ
Solar urban light has the advantages of stability, long service life, simple installation, safety, great performance and energy conservatio
Solar LED urban lights rely on the photovoltaic effect, which allows the solar panel to convert sunlight into usable electrical energy and then power on the LED fixtures.
Yes, we offer 5 years warranty to our products.
Certainly, we can customize the battery capacity of the products based on your project requirements.
When the sun is out, a solar panel takes the light from the sun and produces electrical energy. The energy can be stored in a battery, then light the fixture during the night.
Imagine a solar street light so intelligently designed that it effortlessly blends peak performance with striking aesthetics, all while defying the harshest weather conditions. Welcome to the future of urban illumination—our Hexagonal Vertical Solar Urban Lighting system. This is not merely a light source; it’s a fully integrated, resilient, and sustainable energy solution engineered for the modern smart city.
Unmatched All-Day Energy Harvesting
At the heart of its design lies a robust hexagonal frame, securely fitted with six slim, high-efficiency solar panels. This unique geometry is a game-changer: no matter the sun’s position, the structure guarantees that a minimum of 50% of the panel surface is optimally facing the sunlight throughout the day. This eliminates the need for complex and costly on-site orientation, delivering consistent and reliable energy capture from dawn until dusk.
Robust Engineering for Extreme Weather
We’ve built resilience into its very core. The innovative cylindrical design of the PV module significantly reduces the wind load area, mitigating the risk of damage during storms. Each unit is fortified directly onto the pole with 12 heavy-duty screws, providing exceptional wind resistance that makes it the ideal, dependable choice for coastal and other exceptionally windy regions. Furthermore, the vertical mounting of the panels is a masterstroke in climate adaptability. It naturally prevents the accumulation of snow and minimizes dust buildup, ensuring continuous power generation even during heavy snowfall or in dusty environments. Say goodbye to the power outages that plague traditional solar lights in winter.
Streamlined Maintenance & Superior Aesthetics
Beyond pure performance, this system redefines operational efficiency. Its vertical surface attracts significantly less dust than conventional flat panels, and when cleaning is required, the task is remarkably simple. Maintenance personnel can perform a thorough clean safely from the ground using a standard extended brush or spray, dramatically enhancing worker safety and slashing long-term operational costs.
Crafted on a modular design concept, the entire system allows for swift installation and effortless component replacement, future-proofing your urban infrastructure. It provides a compact, clean, and fully integrated green energy solution that elevates the pole from mere utility to a statement of modern, sustainable design.
The Hexagonal Vertical Solar Urban Lighting is more than just a product—it’s a commitment to a smarter, greener, and more resilient urban future. Embrace the innovation that shines bright, day and night, through every season.
High Efficacy: 140lm/W.
Hexagonal Vertical Solar panel design.
Off-grid lighting made electric bill free.
Require much less maintenance compared to conventional AC lights.
The risk of accidents are minimized for the city power free.
Electricity produced from solar panels is non-pollute.
Energy costs can be saved.
Installation choice – install anywhere.
Super better return on investment.
IP66: Water and Dust Proof.
Five Years Warranty.
