TalosTM Ⅰ Series Integrated Solar Streetlight
  • CE
  • Rohs

THE COMBINATION OF SIMPLICITY ELEGANCE AND DURABILITY

Harnessing the power of the sun, the all-in-one TalosⅠ solar luminaire delivers zero carbon illumination to brighten your streets, pathways, and public spaces. It stands apart with its originality and solid construction, seamlessly integrating solar panels and large battery to provide real and continuous high brightness output for long operation hours.

Embrace the future of sustainable lighting with TalosⅠ, where style meets substance in a beautiful, efficient package.

Eliminating the need for electric power, Elite TalosⅠ Series solar powered LED street lights can be installed in any location with direct view of the sun. It can be easily installed along roadways, freeways, rural roads, or in neighborhood streets for security lighting, and other municipal applications.

Specifications

Description

Features

Photometric

FAQ

Accessories

Parameters
LED Chips Philips Lumileds 5050
Solar Panel Monocrystalline silicon photovoltaic panels
Color Temperature 5000K(2500-6500K Optional)
Beam Angle 60×100° / 70×135° / 75×150° / 80×150° / 110° / 150°
IP & IK IP66 / IK08
Battery LiFeP04 battery
Solar Controller PWM/MPPT Controller/ Hybrid MPPT Controller
Work Time One consecutive rainy days
Daytime 10 hours
Dimming / Control PIR & Timer Dimming
Housing Material Aluminum alloy(Black Color)
Work Temperature -30°C ~ 45°C / -22°F~ 113°F
Mount Kits Option Slip fitter
Lighting status Check the details in the spec sheet

Model

Power

Solar Panel

Battery

Efficacy(LED)

Dimension

Net Weight

EL-TASTⅠ-30

30W

48W/18V

12.8V/18AH

200 lm/W

768×369×340mm

TBA

EL-TASTⅠ-40

40W

48W/18V

12.8V/18AH

195 lm/W

768×369×340mm

TBA

EL-TASTⅠ-50

50W

55W/18V

12.8V/24AH

190 lm/W

868×369×340mm

TBA

EL-TASTⅠ-60

60W

65W/18V

12.8V/24AH

185 lm/W

1068×369×340mm

TBA

EL-TASTⅠ-80

80W

85W/36V

25.6V/18AH

195 lm/W

1368×369×340mm

TBA

EL-TASTⅠ-90

90W

95W/36V

25.6V/18AH

195 lm/W

1368×418×340mm

TBA

EL-TASTⅠ-120

120W

145W/36V

25.6V/24AH

185 lm/W

1368×548×340mm

TBA



FAQ

1. Who are we?

E-Lite Semiconductor Co., Ltd. has 15 years of led lighting manufacturing experience in China and 12 years international LED lighting business experience. ISO9001 and ISO14000 support. ETL/DLC/CE/CB/RoHS/SAA certificates support for different products. We always keep our client's profits and never play the price game in the market.

2. How to install the product?

Products generally have different installation methods, which can meet the needs of all aspects. Moreover, the installation method of the product is simple. Detailed installation tutorials will be equipped in the details page to let you worry free.

3. What are the advantages of our products?

The advantages of our products are as follows:

1. We are the source manufacturers, quality is guaranteed, product warranty can reach 5 years or 10 years.

2. The price is more affordable. The more you order, the cheaper the price.

Choosing us means choosing protection. We will give you a discount on the platform price, if you are interested, please feel free to contact us.

4. How can we guarantee quality?

Always a pre-production sample before mass production;
Always final inspection before shipment;

5.What can you buy from us?

Sports light & Flood light, Roadway Lighting, High Bay for 80/176Ambient Temp, Engineering & Heavy-duty Lighting, URBAN Lighting & High Mast Lighting, High Bay for General Uses, Wall Pack, Canopy Lighting, Tri-proof Linear Luminaire, etc.


  • Previous:
  • Next:

  • LED solar street lights are innovative lighting solutions that combine light-emitting diode (LED) technology with solar power to provide efficient and environmentally friendly illumination for outdoor spaces, particularly on streets and roadways. Here is a description of the key components and features of E-Lite TalosSeries LED solar street lights :

    Solar Panel– TalosSeries LED solar street lights are equipped with photovoltaic solar panels that convert sunlight into electrical energy. These panels are typically mounted on top of the light fixture to maximize exposure to sunlight.

    Battery– TalosSeries LED solar street lights include high performance rechargeable batteries that store the energy generated by the solar panels during the day. These batteries are designed to provide power during nighttime or when there is insufficient sunlight.

    LED Light SourceThe primary light source in these street lights is LED technology. LEDs are energy-efficient, long-lasting, and provide bright illumination. With Philips lumileds 5050 LED chips, TalosSeries LED solar street lights come in various wattages and color temperatures to meet different lighting requirements.

    Controller E-Lite use a PWM/MPPT charge controller to regulate the charging and discharging of the batteries. It helps prevent overcharging or deep discharging, ensuring the longevity of the battery and overall system efficiency.

    Motion Sensors and Dimming—E-Lite TalosSeries LED solar street lights are equipped with motion sensors(PIR/Microwave) that can detect movement in the vicinity. This feature allows the lights to operate at full brightness when motion is detected and dim when no activity is present, conserving energy.

    Choosing LED solar street lights offers a range of advantages that make them a compelling choice for outdoor lighting applications. Here are some key reasons why LED solar street lights are often preferred:

    Energy EfficiencyLED technology is highly energy-efficient, converting a higher percentage of electrical energy into visible light. This efficiency reduces overall energy consumption, making TalosSeries LED solar street light a sustainable and cost-effective choice.

    Solar Power– TalosSeries LED solar street lights operate independently of the electrical grid, relying on solar panels to harness sunlight and convert it into electricity. This renewable energy source not only reduces reliance on traditional power sources but also contributes to environmental sustainability.

    Cost SavingsOver the long term, TalosSeries LED solar street lights can lead to significant cost savings. While the initial investment may be higher, the absence of electricity bills, reduced maintenance costs, and potential government incentives or rebates make them financially attractive.

    Low Maintenance– TalosSeries LED solar street lights have a longer lifespan compared to traditional lighting technologies, such as incandescent or fluorescent bulbs. This results in lower maintenance costs and fewer replacements, especially when combined with durable and weather-resistant designs.

    E-Lite TalosSeries LED solar street lights are efficient and reliable, and they can produce very bright light with high performance Philips Lumileds 5050 LED chip. With 200LPW delivered, these AIO solar street lights can produce light of up to 22,200lm to ensure you can see everything below and around them.

    High Efficacy: 200lm/W.

    All-in-one design

    Off-grid roadway lighting made electric bill free.

    Require much less maintenance compared to conventional street lights.

    The risk of accidents are minimized for the city power free

    Electricity produced from solar panels is non-pollute.

    Energy costs can be saved.

    Installation choice – install anywhere

    Super better return on investment

    IP66: Water and Dust Proof.

    Five Years Warranty

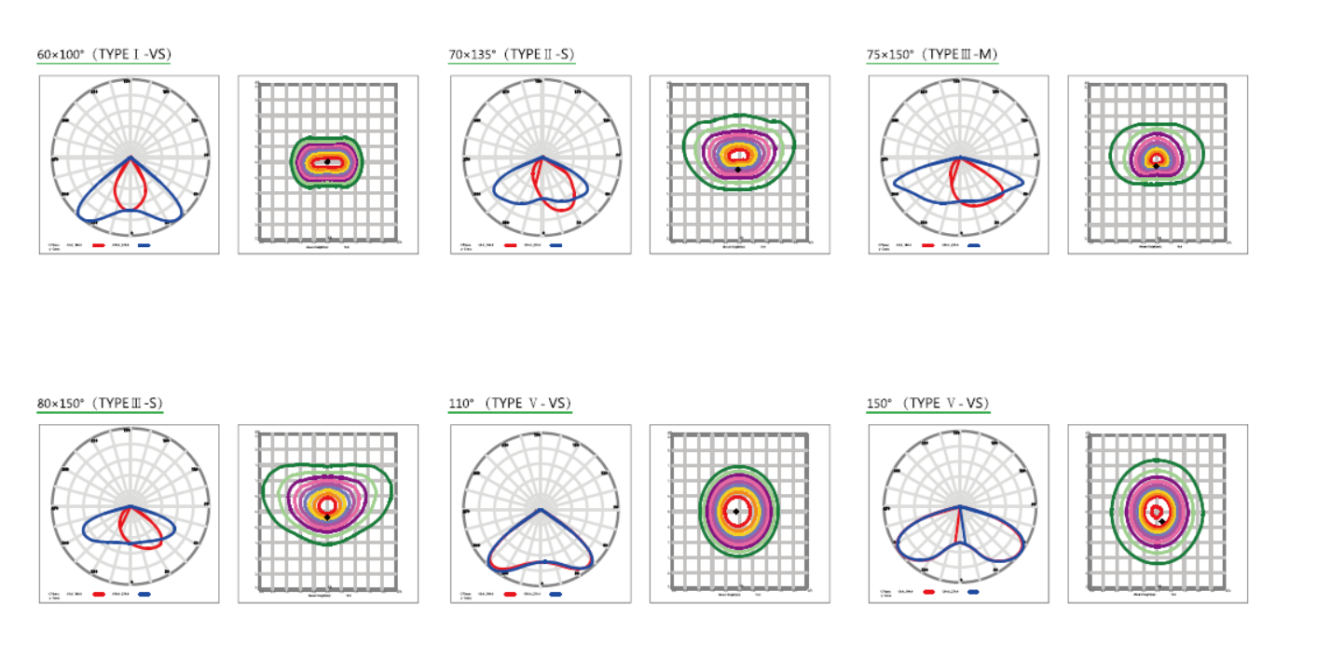

    Photometric

    Q1: What is the benefit of solar street lights?

    Solar street light has the advantages of stability, long service life, simple installation, safety, great performance and energy conservation..



    Q2. How do solar powered street lights work?

    Solar LED street lights rely on the photovoltaic effect, which allows the solar panel to convert sunlight into usable electrical energy and then power on the LED fixures.



    Q3.Do you offer the guarantee for the products?

    Yes, we offer 5 years warranty to our products.



    Q4. Do solar panels work under street lights?

    If we’re to talk about the basics, it’s obvious that solar LED street lights work by utilizing solar energy – however, it doesn’t stop there. These street lights are actually dependent on photovoltaic cells, which are the ones responsible for absorbing solar energy during daytime.



    Q5. How the solar lights work at night?
    When the sun is out, a solar panel takes the light from the sun and produces electrical energy. The energy can be stored in a battery, then light the fixture during the night.

    Type Mode Description
    Accessories Accessories DC charger
