Edge^TM Heavy-duty High Bay

As a really heavy-duty industrial high bay, Edge is IP66 rated for operation in wet environments and all weather conditions including high humidity, and 3G vibrations rated for installation on machinery, industrial infrastructure, and other demanding applications.

With universal mounting bracket, Edge high bay delivers up to 63,000 lm at 140Lm/W efficacy. Its choice of 15 optics produce precise illumination for any types of site or application. Independent modular LED engines and driver protect ensure long lifespan with improved thermal management.

Specifications IES Files Installation Manual

Request Free Sample Deliver To Door Contact

Specifications

Description

Features

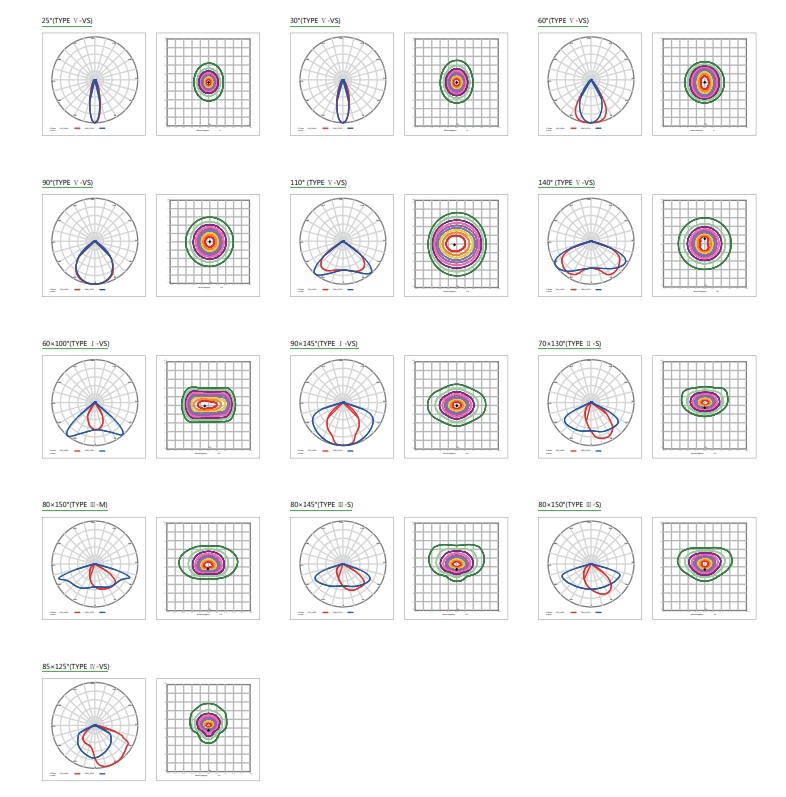

Photometrics

Accessories

LED Chip & CRI	Philips Lumileds
Input Voltage	100-277VAC (347/480 VAC Optional) Dimming Optional
CCT	4500~5500K (2500~6500K Optional)
Beam Angle	60°x100°,80°x145°,70°x130°,80°x150°,85°x125°, 25°30°60°,90°110°140°
IP & IK	IP66 / IK10
Driver Brand	Inventronics
Power Factor	0.95 minimum
THD	20% Max
Housing	Aluminum Alloy
Work Temp	-40 to 50°C (-22 to 122°F)
Mount Option	Hang Ring / Long Bracket / Slip Fitter / Side Arm
Warranty	5 Years Warranty
Certificate	ETL DLC5.1 CE RoHS

Model	Power	Efficacy(IES)	Total Lumens	Dimension	Net Weight
EO-ED-75U	75W	137LPW	10,275lm	351x410x175mm	5.4kg/11.9lbs
EO-ED-100U	100W	154LPW	15,400lm	448x410x175mm	6.5kg/14.3lbs
EO-ED-150U	150W	140LPW	21,000lm	448x410x175mm	6.5kg/14.3lbs
EO-ED-200U	200W	145LPW	29,000lm	542x410x175mm	7.5kg/16.5lbs
EO-ED-240U	240W	137LPW	32,880lm	542x410x175mm	7.5kg/16.5lbs
EO-ED-300U	300W	140LPW	42,000lm	702x410x175mm	7.9kg/17.4lbs
EO-ED-450U	450W	140LPW	63,000lm	850x410x175mm	14.8kg/32.6lbs

FAQ

Q1: Are you a manufacturer?

E-LITE: Yes, our factory with over 15 years R&D and manufacture experience base on ISO quality management.

Q2. Can I have a sample order for Edge LED High Bay Light?

E-LITE: Yes, sample order to test and check quality is welcomed. Mixed samples are acceptable.

Q3. How about the lead time of Edge LED High Bay Light?

E-LITE: 5-7 days for sample order, 15-25 days for mass production order base on order quantities.

Q4: How do you ship the finished production?

E-LITE: By SEA, AIR or Express (DHL, UPS, FedEx, TNT, etc.) are optional.

Q5: Is it able to print my logo on Edge LED High Bay Light?

E-LITE: Yes, OEM service available, we can help to make the label and color box according to your requirements.

Q6: How to place an order for Edge LED High Bay Light?

E-LITE: Firstly, please let us know your detail requirement and application environment, secondly we will recommend some suitable products and solutions to you according to your request. Thirdly, after confirm all the details, customers will issue the purchase order and make the payment to confirm, then we start for the production and arrange the shipment.

Previous: New Edge^TM Modular Sports Light

Next: Edge^TM Modular Flood Light

E-Lite LED high bay light plays an important part of modern industrial lighting since 2009 the first generation LED high bay light released to international market. Traditional high bay lights often use 100W, 250W, 400W, 750W, 1000W and 2000W metal halide lamps. E-Lite developed the LED high bay lighting to replace the traditional high bay, like, MH, HID and HPS considering the innovation technology of high efficacy LED chip out of labs.

E-Lite Edge series LED High Bay Light is a new type of high-efficiency, energy-saving, long-life, and environmentally friendly LED bay lights. This series LED modular high bay just followed up the first general Smart high bay fixtures, with higher efficacy led package, of good thermal management heat sink, flexible power combinations became the hot item in international market once it released to the world. Accordingly, Top One bestselling LED high bay light awarded to Edge high bay lighting.

Come back to is construction, the unique heat sink design, perfectly combined with the fixture body, effectively conducts and diffuses the heat, thereby reducing the temperature in the lamp body, and effectively ensuring the life of the light source and power supply. The surface of the radiator is treated with anodic oxidation and anti-corrosion, and the structure is compact and beautiful, reaching the IP66 standard, and has good anti-corrosion, waterproof and dust-proof performance. The energy saving effect is obvious.

The high-power LED light source, Philips lumileds LED chip, is equipped with high-efficiency and branded power supply, which can guarantee its top quality be the first tire of LED lighting luminaires in international market.

Designed to suspend from high ceilings, these LED high bay fixtures provide brighter and longer lasting light. According to different indoors lighting applications, Edge series high bay lights already design the right lighting distribution type by its 2^nd optical lenses design included but not limited to 60degree, 90degree, 110degree and 150degree.

★ System Light Efficacy 137~154 LPW

★ Multiple Choices of Optical Lenses

★ Easy Installation & Maintenance

★ Flexible, Modular Design

★ IP66

★ 3G Vibration Rating

★ Five Years Warranty

★ CE, CB, RoHS, ETL, DLC, SAA

Replacement Reference		Energy Saving Comparison
EO-ED-75U	150 Watt Metal Halide or HPS	50% saving
EO-ED-100U	250 Watt Metal Halide or HPS	60% saving
EO-ED-150U	400 Watt Metal Halide or HPS	62% saving
EO-ED-200U	400/750 Watt Metal Halide or HPS	50-73% saving
EO-ED-240U	750 Watt Metal Halide or HPS	73% saving
EO-ED-300U	1000 Watt Metal Halide or HPS	70% saving
EO-ED-450U	1500 Watt Metal Halide or HPS	70% saving
