Hot-selling China LED Flood Light Stadium Lighting for Football Sport Field Light 800W 1000W Outdoor Lamp
  • CE
  • Rohs

Titan series is an economical and energy efficient solution for high levels of illumination over large areas including sports facilities, industrial complexes, transportation and shipping terminal areas. With up to 160 Lm/w efficacy and 120,000 Lm light output, it features a range of wattage, low glare shield and choices of optics, resulting in excellent light levels and uniformity in any scale of site and field, as well as a significant reduction in spill light.

Titan’s all weather, rugged machined and powder coated die cast aluminum construction ensures maintenance free lifetime operation in cold, hot or wet environments. Dynamic thermal management design maximizes heat dissipation, substantially increasing life of the luminaire. Standard 10VDC dimming provides for optional dimming and remote control.

Description

Specification

Features

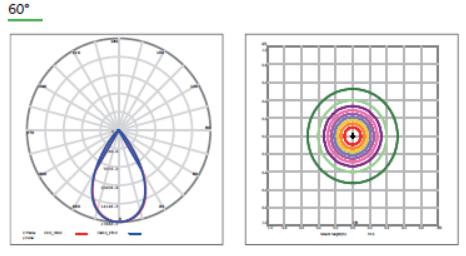

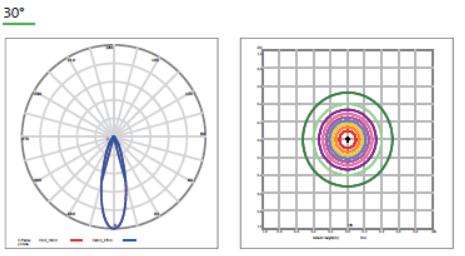

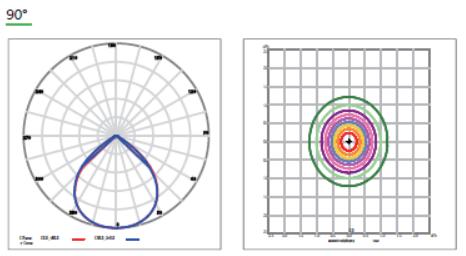

Photometrics

Accessories

Our eternal pursuits are the attitude of “regard the market, regard the custom, regard the science” and the theory of “quality the basic, belief the very first and management the advanced” for Hot-selling China LED Flood Light Stadium Lighting for Football Sport Field Light 800W 1000W Outdoor Lamp, To attain reciprocal advantages, our company is widely boosting our tactics of globalization in terms of communication with overseas prospects, rapid delivery, the most beneficial high-quality and long-term cooperation.
Our eternal pursuits are the attitude of “regard the market, regard the custom, regard the science” and the theory of “quality the basic, belief the very first and management the advanced” for China Outdoor Light, LED Spotlight, Our staffs are adhering to the “Integrity-based and Interactive Development” spirit, and the tenet of “First-class Quality with Excellent Service”. According to the needs of every customer, we give customized & personalized services to help customers achieve their goals successfully. Welcome clients from home and abroad to call and inquire!
Sports lighting is a type of site light fixture that is commonly used to illuminate large areas for sporting events or other large outdoor events and activities. Sports light fixtures are typically mounted on poles 40 to 100 feet tall high, with about 1-18 fixtures mounted on each pole. This type of outdoor lighting is often used by municipal, high schools, colleges and universities, amateur sports clubs, and professional sports franchises.

Titan LED sports lighting features efficient LUMILEDS LED chips with various power choices, and the highest one is 800W. With precise, custom-engineered optics, our sports lighting enhance glare-free and various beam angles(15°/30°/60°/90°), which can light the sports areas avoiding any uncomfortable sensation or visual discomfort for the athletes, players or the spectators. The Titan LED sports lights are also suitable for 4K, HD and HDTV broadcasting, digital photography and flicker-free slow-motion recording for optimal television and live audience views.

The highest efficacy, 160LPW, can save you up to 65% in energy use compared to the traditional HID sports lighting. More lighting with fewer fixtures help you save big money not only from the lamp cost but also the lamp installation and maintenance.

Its aesthetically pleasant compact heat dissipation structural design has enlarged the area of heat-dissipation, not only guarantee LED luminous effect but also prolong the usage lifespan up to more than 100,000 hours.

Titan sports lighting are perfect for placing at indoor and outdoor sports venues and outdoor stadiums or arenas. Its durable die-cast housing and IP66 design can be used in wet location and withstand harsh, extreme outdoor conditions and corrosive environments.

With the U-bracket accessory, it only takes a few minutes to install it according to the installation steps are listed in the instruction sheet included in the package, improving the operation efficiency and reducing the potential danger for work high above the ground at the same time.

FAQ

Q1: What are sports lightings?

E-LITE: Sports lighting is to provide lighting that allows a sport to take place safely (i.e. designed to suit the speed of play and size of any objects used in the sport) and provide good viewing conditions, both in visibility of the sports action and comfort of the audience.

Q2: What are the benefits of LED sports lighting?

E-LITE: Energy Savings: 40%-70% reduction in energy consumption

Maintenance Cost Reduction: the functional life (often in excess of 100,000 hours) of an LED fixture can be significantly longer than that of a HID Lamp, which in turn drastically reduces the costs for maintaining exterior light fixtures over a longer period of time.

Lighting Performance: LED sports field fixtures for site and large area applications often provide a very EVENLY distributed light pattern. LEDs are available in a range of color temperatures, which can provide a range of options to increase the visual perception of “brightness”.

Q3: Where are sports lightings used?

E-LITE: Schools, Colleges and universities, Municipalities, Amateur sports clubs and professional sports franchises.

Q4: What’s warranty?

E-LITE: Five years warranty supplied.Our eternal pursuits are the attitude of “regard the market, regard the custom, regard the science” and the theory of “quality the basic, belief the very first and management the advanced” for Hot-selling China LED Flood Light Stadium Lighting for Football Sport Field Light 800W 1000W Outdoor Lamp, To attain reciprocal advantages, our company is widely boosting our tactics of globalization in terms of communication with overseas prospects, rapid delivery, the most beneficial high-quality and long-term cooperation.
Hot-selling China Outdoor Light, LED Spotlight, Our staffs are adhering to the “Integrity-based and Interactive Development” spirit, and the tenet of “First-class Quality with Excellent Service”. According to the needs of every customer, we give customized & personalized services to help customers achieve their goals successfully. Welcome clients from home and abroad to call and inquire!


  • Previous:
  • Next:

  • Parameters
    LED Chips Lumileds 5050
    Input Voltage AC100-277V Or 277-480V
    Color Temperature 3000 / 4000 / 5000K / 6000K
    Beam Angle 15°/30°/60°/90°
    IP & IK IP66 / IK10
    Driver Brand Sosen Driver
    Power Factor 0.95 minimum
    THD 20% Max
    Dimming / Control 0/1-10V Dimming
    Housing Material Die-cast Aluminum(Black)
    Work Temperature -40°C ~ 45°C / -40°F~ 113°F
    Mount Kits Option U Bracket

    Model

    Power

    Efficacy(IES)

    Lumens

    Dimension

    Net Weight

         CED-300

    300W

    160LPW

    48,000lm

    L483×D450×H321mm

    /

    CED-400

    400W

    150LPW

    60,000lm

    L483×D450×H321mm

    /

    CED-500

    500W

    145LPW

    72,500lm

    L483×D450×H321mm

    /

    CED-600

    600W

    160LPW

    96,000lm

    L581.3×D537×H321mm

    /

    CED-800

    800W

    150LPW

    120,000lm

    L581.3×D537×H321mm

    /

    ★ System light efficacy up to 160 LPW.

    ★ Multiple choices of optical lenses lead to kinds of beam angles fitted to any sports area.

    ★ Laser pointer for precise point aiming makes your installation easier.

    ★ Corrosive resistant polyester powder coat finish body can withstand harsh outdoor environments.

    ★ Easy Installation & Maintenance reduce your labor cost.

    ★ IP66 rate allow it to be used in wet location.

    ★ 5 Years Warranty.

    ★ CE, RoHS certified.

    Replacement Reference

    Energy Saving Comparison

    300W TITAN SPORTS LIGHTING 750-1000 Watt Metal Halide or HPS 60%-70% saving
    400W TITAN SPORTS LIGHTING 1000 Watt Metal Halide or HPS 60% saving
    500W TITAN SPORTS LIGHTING 1000-1500 Watt Metal Halide or HPS 50%-66.7% saving
    600W TITAN SPORTS LIGHTING 1000-1500 Watt Metal Halide or HPS 40%-60% saving
    800W TITAN SPORTS LIGHTING 1500-2000 Watt Metal Halide or HPS 46.7%-60% saving





    sports lighting application-Titan5 sports lighting application-Titan3 sports lighting application-Titan4

    Type Mode Description
    UB UB U bracket
