LiteProTM Rotatable Wallpack Light
  • ETL
  • DLC
  • CE
  • Rohs

LitePro wall pack light is perfect for illuminating pathways and perimeters, giving pedestrians a greater sense of security around commercial locations, educational institutions, or residences.

Featuring rotatable light engine, LitePro minimize light pollution and direct light exactly where it is needed. IP66 rated for wet locations, the wall pack is designed to protect each fixture from vandalism and bad weather.

It could be also paired with timers or photocells for hassle free bright night time lighting and energy savings during the day without needing to worry about manually turning the fixture on and off.

Specifications

Description

Features

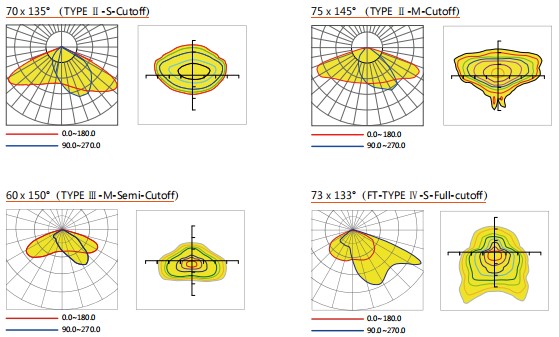

Photometrics

Accessories

Parameters
LED Chips Lumileds 3030 / RA>70
Input Voltage AC100-277V Or 277-480V
Color Temperature 3000K,4000K,5000K,6000K
Beam Angle TYPEⅡ 70x135°75x145°   TYPE Ⅲ 60 x 150° 73 x 133°
IP & IK IP66 / IK10
Driver Brand Sosen Driver
Power Factor 0.95 minimum
THD 20% Max
Dimming / Control 1-10V Dimmable
Housing Material Aluminum Aolly
Housing color RAL 9017 Black
Work Temperature -30°C ~ 50°C / -22°F~ 122°F
Mount Kits Option Bracket Wall Mount

Model

Power

Eifficacy(IES)

Lumens

Dimension

Net Weight

EL-WPGP-40

40W

140LPW

5,600lm

225x307x100mm

4kg/8.82lbs

EL-WPGP-60

60W

130LPW

7,800lm

225x307x100mm

4kg/8.82lbs

EL-WPGP-90

90W

140LPW

12,600lm

330x307x100mm

5kg/11.02lbs

EL-WPGP-120

120W

130LPW

15,600lm

330x307x100mm

5kg/11.02lbs

FAQ

Q1. Can you design the product I want?

E-LITE: Of course. You can put forward your specific requirements to us, and our technical team will work out a feasible scheme for you.

Q2. What services will you provide?

E-LITE: If you don't mind, you can tell us the following information: you are a factory, wholesaler, purchaser, distributor, consumer or do engineering, design or home furnishing. We can provide you with a detailed explanation. You will also patiently answer every question. We have set up a customer complaint party. If you are not satisfied with our service, you can tell us directly by email or phone. We answer all the questions for you.

Q3.How to order?

E-LITE: Firstly, let us know your request or application; Then, we offer according to your request or our suggestion; Thirdly, the customer confirms the sample and makes a deposit for the formal order; Finally, we arrange production.

Q4. When can I get the quotation?

E-LITE: If you are interested in any project, please send your feedback to our email or chat with the trade manager. We usually quote within 12 hours after receiving your inquiry. If you have a very urgent project that needs our quick response, please call us or let us know in your email so that we can make your inquiry a priority.

Q5. Can I print my logo on the product?

E-LITE: Yes. We can freely to design it base on your detailed requirements.


  • Previous:
  • Next:

  • E-Lite LitePro series LED wall pack combines the latest LED technology with innovative idea for different lighting applications by its adjustable LED bars which provide optimal backlight, uplight and glare (BUG) beam management. Module hinge system rotates from vertical allowing light to orient downward or adjust to a forward projection. Rotatable wall pack Light fixture has a practicably design for outdoor landscape, industrial or wall lighting application.

    LitePro Series wallpack designed for the 140lm/w system efficacy, equipped 50,000 hours and waterproof IP66 LED driver. At the same time, it offered two distribution optic lenses, high performance lighting can save about 80% of energy, replacing up to 50-600W Metal Halide (HID). There are four wattages: 40W, 60W, 90W and 120W. LitePro LED wall pack has with up to 15,600 lumens. Moreover, top brand materials and rigorously engineered to provide a long-life trouble-free LED lighting solution at a cost effective price with L70>100,000 hours rated security.

    The LitePro series wall pack designed with robust aluminum alloy housing provides advanced thermal management and durability for outdoor applications, and the UV-resistant PC lens made from PC 3000U which materials imported from Japan will hold up against the elements of bad weather. LitePro wall pack takes the independent led module or led bar, one for 40W and 60W, two bar for 90W and 120W. Whole fixture structure ingress protection highly reached up to IP66 level for against dust and low-pressure water jet ingress.

    Complement the luminaire with motion sensors (optional) that turns on, dims, and turns off your luminaire when motion is detected. Also compatible with the photocell system which turns the luminaire on and off when it detects natural sunlight.

    There are multiple choices of beam angles, which can meet various lighting requirements. And adjustable LED bars offer the more lighting distribution choice which can be settle down according to projects and applications demands on fields.

    Simple bracket mount wall installation process, one person can easily complete the installation. Compared with traditional wall pack, it has super advantages in installation process and installation time.

    ★ Modular Litepro wall pack with rotatable light engine which easily to guide illumination

    ★ UV-Stabilized powder-coated surfaced treatment with corrosion resistant

    ★ Constructed under lightweight and resistant aluminum, which makes it the ideal lighting for exteriors

    ★ Individual optical modules for a better direction of light

    ★ Compatible with motion sensors and photocells that help maximize energy savings

    ★ IP66 rating is for complete protection against dust and low-pressure water jet ingress

    ★ No UV or IR radiation in the beam, no flickering

    ★ Does not contain lead and mercury

    ★ Energy saving, 50000 hours lifespan

    ★ ETL and DLC certificated

    Replacement Reference Energy Saving Comparison
    40W WALL PACK LIGHT 100 Watt Metal Halide or HPS 60% saving
    60W WALL PACK LIGHT 250 Watt Metal Halide or HPS 76% saving
    90W WALL PACK LIGHT 400 Watt Metal Halide or HPS 77% saving
    120W WALL PACK LIGHT 600 Watt Metal Halide or HPS 80% saving

    wp3

    Image Product Code Product Description
    BK01 BK01 Wall mount bracket
