Mazzo TM Series Urban Lighting
  • ETL
  • CE
  • Rohs

Mazzo is stylishly designed for urban space lighting. As the most versatile outdoor lighting solution, it fits seamlessly into any urban setting with a range of installation options – pole-top lyre, pole-top arms, post-top bracket, lantern and suspension.

With its timeless style and soft glow, Mazzo creates a elegant and gentle air for all kinds of city activities, be it jogging, driving, shopping or socializing.




Energy Saving Chart



LED Chips Philips Lumileds
Input Voltage 100-277 VAC (200-480 VAC Optional) Dimming Optional
Color Temperature 4500~5500K (2500~5500K Optional)

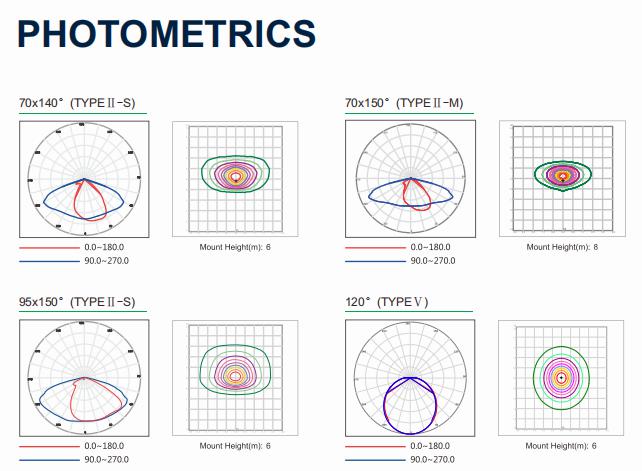

Beam Angle 70x140°(TYPEⅡ-S)  95x150°(TYPEⅡ-S)    70x150°(TYPEⅡ-M)  120°(TYPEⅤ)
IP & IK IP66 / IK09
Driver Brand Sosen Driver/1-10v dimmable
Power Factor 0.95 minimum
THD 20% Max
Dimming / Control 0/1-10V Dimming / NEMA Twist-locked Photocell
Housing Material Die-cast Aluminum
Work Temperature -45°C ~ 45°C / -49°F~ 113°F
Mount Kits Option Post Top/Suspension/Bracket







Net Weight

























19, 500lm



1. Who are we?

E-Lite Semiconductor Co., Ltd. has 15 years of led lighting manufacturing experience in China and 12 years international LED lighting business experience. ISO9001 and ISO14000 support. ETL/DLC/CE/CB/RoHS/SAA certificates support for different products. We always keep our client's profits and never play the price game in the market.

2. How to install the product?

Products generally have different installation methods, which can meet the needs of all aspects. Moreover, the installation method of the product is simple. Detailed installation tutorials will be equipped in the details page to let you worry free.

3. What are the advantages of our products?

The advantages of our products are as follows:

1. We are the source manufacturers, quality is guaranteed, product warranty can reach 5 years or 10 years.

2. The price is more affordable. The more you order, the cheaper the price.

Choosing us means choosing protection. We will give you a discount on the platform price, if you are interested, please feel free to contact us.

4. How can we guarantee quality?

Always a pre-production sample before mass production;
Always final inspection before shipment;

5.What can you buy from us?

Sports light & Flood light, Roadway Lighting, High Bay for 80/176Ambient Temp, Engineering & Heavy-duty Lighting, URBAN Lighting & High Mast Lighting, High Bay for General Uses, Wall Pack, Canopy Lighting, Tri-proof Linear Luminaire, etc.

  • Previous:
  • Next:

  • Mazzo Series combine style, performance and versatility, which features die-cast aluminum housing with outstanding corrosion protection, and secondary UV resistant polycarbonate optics. The Mazzo provides an aesthetically pleasing addition to any walkway, park, downtown corridor or parking lot with its steady well-defined construction. The highly functioning optics and adjustability provide maximum distribution to make the Mazzo a premier choice for outdoor area lighting.

    Due to the way LEDs generate light,the way the Mazzo Series progress through their functional life is much different. Instead of ceasing to function properly once a fuel source is significantly reduced, Mazzo generated light output degrades VERY SLOWLY over time. As a result the functional life (often in excess of 100,000 hours) of Mazzo Series can be significantly longer than that of HID lamp, which in turn drastically reduces the costs for maintaining Mazzo Series Urban Lighting post top fixtures over a longer period of time.

    Moving on to the way Mazzo Series LED DISTRIBUTE light, as a result of the multi-point design,Mazzo Series Uban lighting applications often provide a very EVENLY distributed light pattern. What this means is that light levels across a given surface will vary less as the distance from the pole or fixture changes. This is as compared to HID fixtures,which often product a “bright spot” directly underneath the fixture with light levels decreasing drastically as the distance from the pole increases. The result, in regards to LED vs HID, is a more even foot candle distribution from the LED conversion. In addition to the even distribution of light,Mazzo Series are available in a range of color temperatures(3000k-5000k), and as a result provide a range of options to increase the visual perception of “brightness.”

    Offering a great variety of mounting options such as Post Top Lyre, Lantern, Post Top Two Arm, Side Arm, Suspended on Pole, and Suspended on Cable, the Mazzo Series Urban Lights are easy to be installed to meet any installation demands.

    Lens options – TypeⅡ:70×140°, 95×150°and 70×150°, TypeⅤ120°.  IP66 and IK09 rated.

    Mazzo Series Urban Lights do not contain harmful metal mercury and will not cause any harm to the environment when scrapped.

    CERTIFICATION & WARRANTY: E-Lite Mazzo Series Urban Lighting provides a 5-year warranty along with CE and RoHS certifications.

    Slim and elegant appearance for urban space

    Excellent glare control for visual comfort.

    Easy installation & maintenance.

    Top grade UV resistance polycarbonate Lens.

    Smart control system / Photocell available upon request.

    Standard 5-year warranty, 10-year warranty available upon request.

    CE, RoHS listed.

    Replacement Reference

    Energy Saving Comparison

    30W MAZZO SERIES URBAN LIGHT 75 Watt Metal Halide or HPS 60% saving
    60W MAZZO SERIES URBAN LIGHT 150 Watt Metal Halide or HPS 60% saving
    90W MAZZO SERIES URBAN LIGHT 250 Watt Metal Halide or HPS 64% saving
    120W MAZZO SERIES URBAN LIGHT 400 Watt Metal Halide or HPS 70% saving
    150W MAZZO SERIES URBAN LIGHT 400 Watt Metal Halide or HPS 62.5% saving


    Type Mode Description
    PTL PTL Post Top Lyre
    PTTA PTTA Post Top Two Arm
    LT LT Lantern
    SOP SOP Suspended on Pole
    SA SA Side Arm
    SOC SOC Suspended on Cable
