Versatile Off-Grid Workhorse: E-Lite MiniVigor Delivers Self-Sufficient Solar Power for Diverse Real-World Scenarios

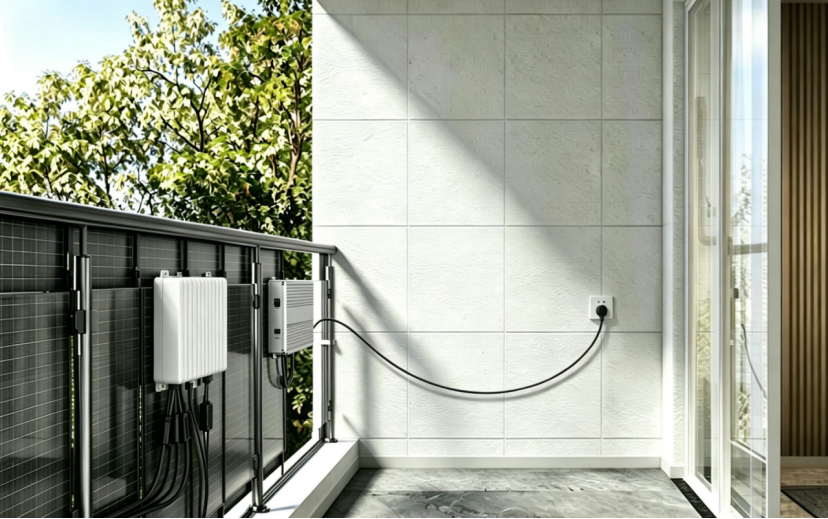

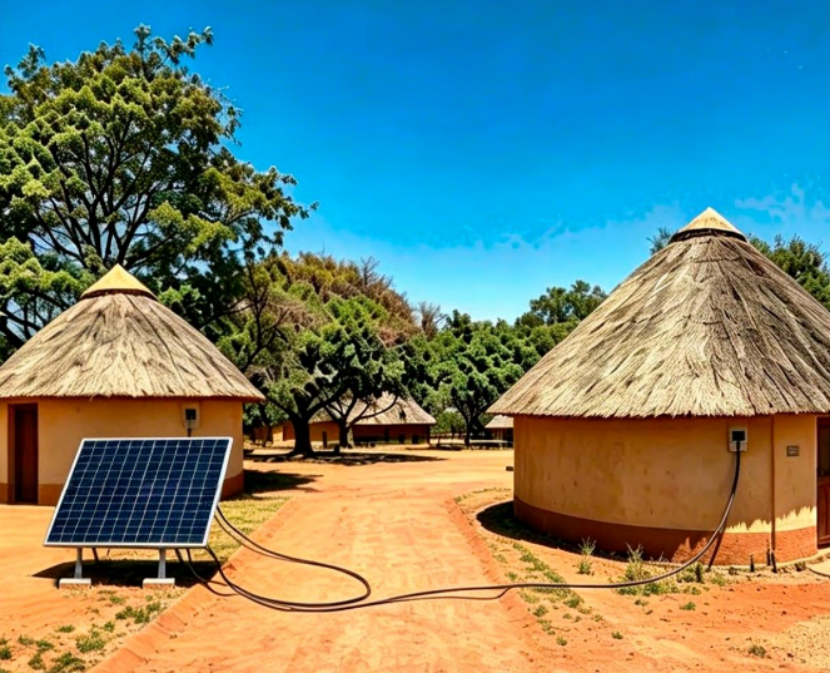

E-Lite Semicon’s MiniVigor modular micro solar energy storage system is purpose-built to resolve power shortages for communities without stable municipal grid access. Fully standalone and 100% grid-independent, MiniVigor fits a wide spectrum of usage scenarios: remote rural huts, off-grid villages, urban apartment balconies, backyard cabins and small independent retail shops across emerging markets.
Independently developed by E-Lite, this all-in-one unit integrates micro inverter, LiFePO4 battery storage and cloud-connected intelligent energy management into a portable plug-and-power kit, perfectly meeting daily electricity demands for sites cut off from public utility grids.
Powerful Optimized Performance: Core Parameters Tailored for Off-Grid Daily Demands
Every technical specification of E-Lite MiniVigor is calibrated to deliver consistent, safe power output even under harsh field conditions, with practical core parameters as below:
- Solar Input: Compatible with one 635W PV panel, supporting up to 800W maximum solar intake; 22–55V MPPT tracking range with 24V startup voltage to capture weak sunlight efficiently.
- Stable AC Output: Continuous 800VA / 230V 50–60Hz output; power factor above 0.99 and THD below 5%, stably powering lighting, refrigerators, fans and small shop machinery without voltage fluctuation.
- Long-Lasting Battery Storage: 48V LiFePO4 battery with 1382.4Wh capacity; 30A max charge current and 20A max discharge current to store sufficient daytime solar energy for full-night power supply.
- Extreme Climate Adaptability: IP67 fully waterproof and dustproof micro inverter, operating steadily between -40°C and +65°C; silent natural convection cooling with zero fan noise, suitable for indoor living spaces
- Low-Maintenance Structure: Compact 2465×1134×495 mm unit weighing 59.5 kg; single faulty modules can be replaced separately, no full-system shutdown required during maintenance
Mass real-world field tests of E-lite MiniVigor in hot, dusty regions such as Africa and Southeast Asia have verified stable, year-round power supply for long-term off-grid use.
Cloud Intelligent Monitoring System: Real-Time Data Viewing & Automated Energy Allocation
A core competitive advantage of E-lite MiniVigor lies in its built-in intelligent energy management system, paired with ELlite’s exclusive NEPViewer mobile app that supports both iOS and Android devices.
Running fully off-grid without grid backup, the system follows preset logical rules to maximize solar charging efficiency in daytime, reserve surplus solar power inside the battery, and automatically release stored energy to sustain all household loads after sunset. Users can remotely check real-time PV generation data, remaining battery capacity, power consumption and overall system running status via cloud connection on mobile phones at any time, enabling transparent energy management aligned with daily electricity habits.
Modular Flexible Design: Adaptable Installation & Scalable Capacity for Changing Needs
E-Lite adopts a modular “pay-as-you-grow” design philosophy to solve two major drawbacks of traditional off-grid solar kits: limited installation options and fixed power capacity. This design fully adapts to users’ evolving power demands over time:
1. Multi-scenario mounting flexibility: Supports rooftop, wall, balcony and ground installation; lightweight MiniVigor modules can be disassembled and relocated freely if users move residences or storefronts.
2. Effortless plug-and-power setup: Directly connects to standard household sockets, eliminating complicated professional wiring and greatly cutting installation labor costs.
3. Gradual capacity expansion: Users can start with a complete single MiniVigor unit, and add extra solar panels or battery modules later as household or business power consumption rises.
All-Round Safety Protection: Stable, Risk-Free Operation for Families & Small Stores
E-Lite places stable and secure operation at the forefront of MiniVigor’s design, equipped with comprehensive multi-layer protection mechanisms:
The integrated LiFePO4 battery pack is fully protected against overcharging, over-discharging, short circuits and overheating. The IP67-rated micro inverter blocks rain, dust and moisture intrusion, drastically lowering failure risks for unattended outdoor operation. Wide-scale on-site deployments prove E-Lite MiniVigor serves as a quiet, zero-carbon alternative to noisy, fuel-consuming diesel generators, eliminating recurring fuel costs for off-grid users.
Closing Summary: E-Lite MiniVigor Perfectly Caters to All Off-Grid Power Requirements
From small balcony residential use to remote rural villages and independent small shops, E-Lite MiniVigor matches its powerful hardware performance, cloud intelligent monitoring, flexible multi-way installation and full safety protection to the real daily power needs of off-grid users.
As E-Lite’s mature standalone solar storage solution, MiniVigor simplifies the complicated, high-cost traditional off-grid power setup, delivering steady self-generated clean solar energy to communities lacking reliable grid power globally. E-Lite Semicon will continue to polish the MiniVigor product line and expand local after-sales service networks, bringing convenient, dependable independent solar power to more off-grid households and small businesses.
E-Lite Semiconductor Co., Ltd
Email: hello@elitesemicon.com
Web: www.elitesemicon.com
Post time: Aug-14-2026
