New EdgeTM Premium Solar Street Light
  • CE
  • Rohs

PED solar streetlight is one the most efficient and powerful solar streetlight in the industry. It works at 180 Lm/W, producing up to 27,000lm light output, making it ideal for municipalities’ large-scale projects of retrofit or new installation.

PED solar lighting system is comprised of IP66 and IK10 rated sturdy constructed light fixture, high quality monocrystalline solar panel and long-lasting LiFePO4 replaceable battery. It is a proven system to withstand multiple harsh environments.

Specifications

Description

Features

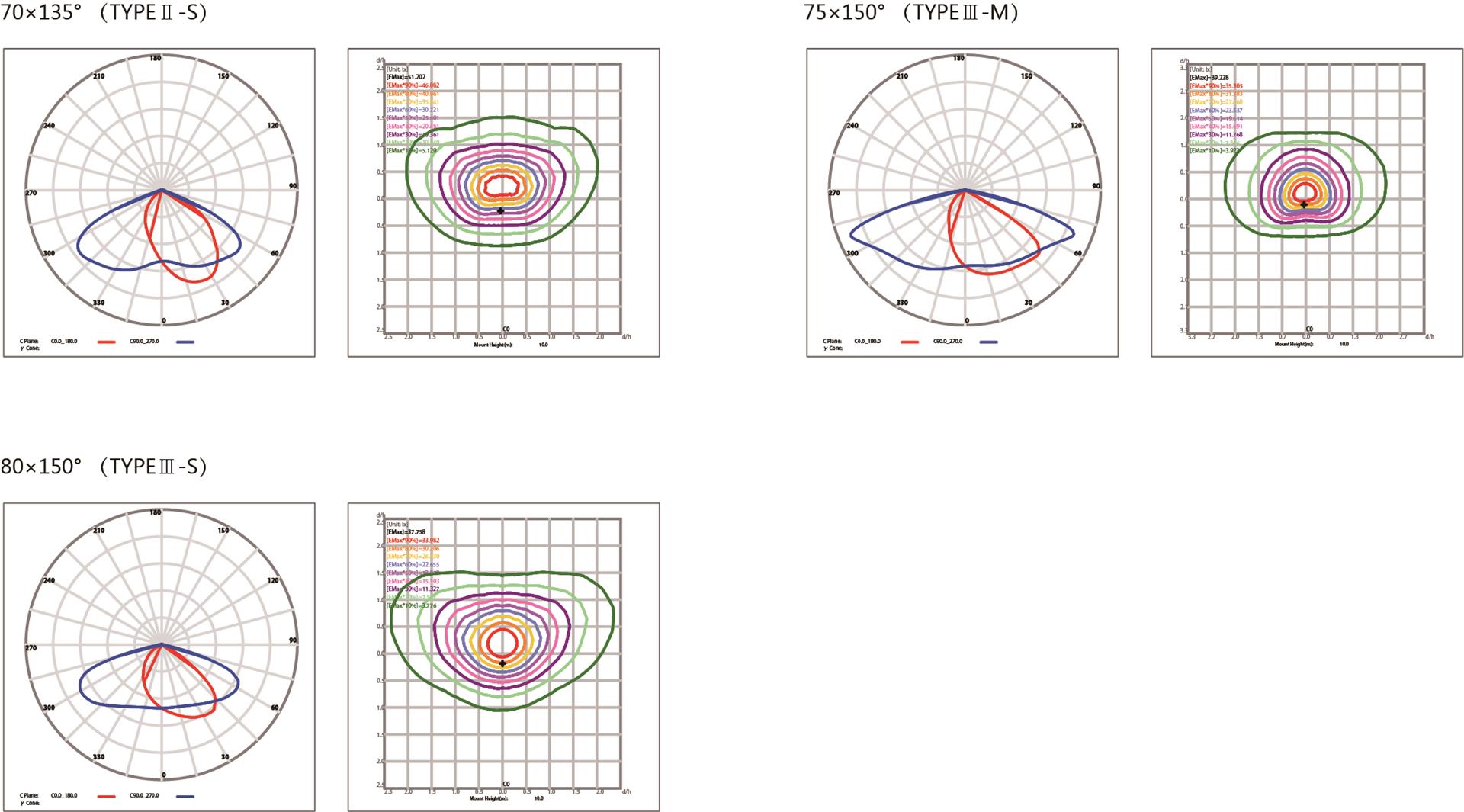

Photometrics

Accessories

LED Chip & CRI

Lumileds 5050 / RA>70

Power Source

Solar Powered

CCT

3000 / 4000 / 5000 / 6000K

Beam Angle

70x135° 75x150° 80x150°

IP & IK

IP66 / IK10

Housing

6063-T5 Extrusion Aluminum

Solar Panel

Monocrystalline silicon photovoltaic panels

Panel Capacity

30W(70W/18V), 60W(130W/18V), 90W(2×100W/18V), 120W(2×130W/18V)

Battery Type

Lithium ion Batteries

Battery Capacity

30W(90AH/12V), 60W(185AH/12V), 90W(280AH/12V), 120W(370AH/12V)

Controller

EPEVER, Remote Power

Work Time

Three consecutive rainy days

Lighting status

4hours-100%, 2hours-60%, 4hours-30%, 2hours-100%

Work Temp

-30°C ~ 60°C / -22°F~ 140°F

Mount Option

Slip Fitter

Warranty

5 Years Warranty

Certificate

ETL DLC5.1 CB CE RoHS

Model

Power

Efficacy(IES)

Total Lumen

Dimension

Net Weight

EL-PED-ST

30W

185LPW

5,550lm

503x358x82mm

5.4kg

60W

175LPW

10,500lm

503x358x82mm

5.4kg

90W

180LPW

16,200lm

597x358x82mm

6.5kg

120W

175LPW

21,000lm

597x358x82mm

6.5kg

FAQ

Q1: How long does delivery take?

E-LITE: United States, Canada district that you can expect your solar street to arrive in 3-6 days.

Q2: How long does the battery pack last per charge if light remains on for several hours? Can an external battery be used in place of the battery pack?

E-LITE: The solar panel must be in direct sun light for at least 6-8 hours per day... This would allow the unit the necessary charge that is needed to power this unit from dusk to dawn daily. Adding an external battery is not necessary for this unit. T normal battery life is 1 to 2 years.

Q3: Can the solar panel be mounted in a separate place than the light? If so, how far it would be?

E-LITE: Yes, you can mount this panel only at the distance of the cord that come with this unit.

Q4: How to deal with the faulty?

E-LITE: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.


  • Previous:
  • Next:

  • E-LITE Solar street lights harvest sunlight during the daytime, convert it into electrical energy that is stored in a battery. At dusk (once sunlight is no longer available) the solar street light will begin it’s preset operating mode by turning on and running from the power that was stored during the day. Its NED solar street light is show time.

    NED LED Solar street light can run reliably all year round and can in some cases give 100% up-time just like (or better than) a main powered street light. E-LITE has been developing High lumens efficacy 180LM/W, 50W ~ 200W @3,6000lm MAX with the solar energy made this series street light such outstanding among others ordinary lighting fixtures with low lumen output. Brightness and energy saving is present and unitize in front of the market in such creditable combination methods which is E-Lite professional team dedicated to.

    Reasons you may be considering outdoor solar street road lights:

    The cost received for mains powered lighting systems is incredibly high – Solar lighting is very cost competitive. Wirings is big problem for roadway lighting in outside, special foundation of power supplier, the cable deployment and the big budgets are all should be per set down. While, solar street light is not considered above but the less budget for the roadway lighting project.

    The remote mountain areas without power and power grid, Solar street lights can quick deploy and light up the silence Villages, bring the sunshine when sun set. Sun offer its love in other way on the base of E-Lite solar light. For this area, lighting in darkness is not just a lamp it gives the feeling of safe, the lover from the lovers and strangers, the hope of the future.

    The 4 main components of a solar street lamp:

    1. Solar cell: high efficiency solar cells, to make sure that the components have maximum output power. Low iron tempered glass: antireflective coating and high light transmittance of glass, increases the power output and mechanical strength.
    2. Battery: micro millimeter SIO2 and H2SO4 technology for efficient gas recombination of up 99% and Freedom from electrolyte maintenance or water adding. Using a special partition can effectively prevent short circuit of battery, to ensure the extreme ambient temperature can be used.
    3. Controller: this product is a cost-effective solar controller, innovative circuit design to discharge efficiency up to 96%, optimized products greatly improve the stability of the system. The controller can automatically adjust the load power according to the remaining capacity of the battery; this function increases the number of days of solar street lights.
    4. LED light: PED Street LED Fixtures use advanced Lumileds 5050 high power led, up to 180LM/W. This means we can give the same light output as mains powered lighting networks using less power – Thus making our systems more reliable than other Solar Street Light manufacturers.

    ★ High Power & High brightness LEDs package light source Lumileds 5050 and deliver 180LM/W.

    ★ Illuminate any outdoor area without electricians or trenching costs.

    ★ Offers an environmentally friendly, off-grid solution for outdoor lighting, Save on energy and installation costs.

    ★ High efficient solar panels convert on average 30% of sunlight energy into electrical energy.

    ★ 10 year warranty on solar panel

    ★ 5 years warranty on LED street light

    Replacement Reference Energy Saving Comparison
    50W Solar Flood Light 200 Watt Metal Halide or HPS 100% saving
    100W Solar Flood Light 500 Watt Metal Halide or HPS 100% saving
    150W Solar Flood Light 750 Watt Metal Halide or HPS 100% saving
    200W Solar Flood Light 1200 Watt Metal Halide or HPS 100% saving

    PED Series Street Light with split solar panel

    Type Mode Description
    SF60 SF60 Slip fitter
    SD SD Slide in
