EdgeTM High Temp High Bay
  • ETL
  • 3f4e542bed6cfaa79a5e3ddb48670be
  • CB1
  • SASO(1)
  • CE
  • Rohs
  • SASO

Edge series high temperature LED High Bay sets the industry standard with energy efficiency and durability for the longest-lasting performance in high ambient temperature industrial applications including Manufacturing, Power Generation, Water and Wastewater, Pulp and Paper, Metals and Mining, Chemical and Petrochemical and Oil and Gas. Designed for operation in an environment with ambient temperature up to 80°C, The low-profile, rugged fixture is a worry-free, low maintenance lamp for maximum reliability, durability and shock, vibration and vandalism resistance, even in the harshest environments.

Specifications

Description

Features

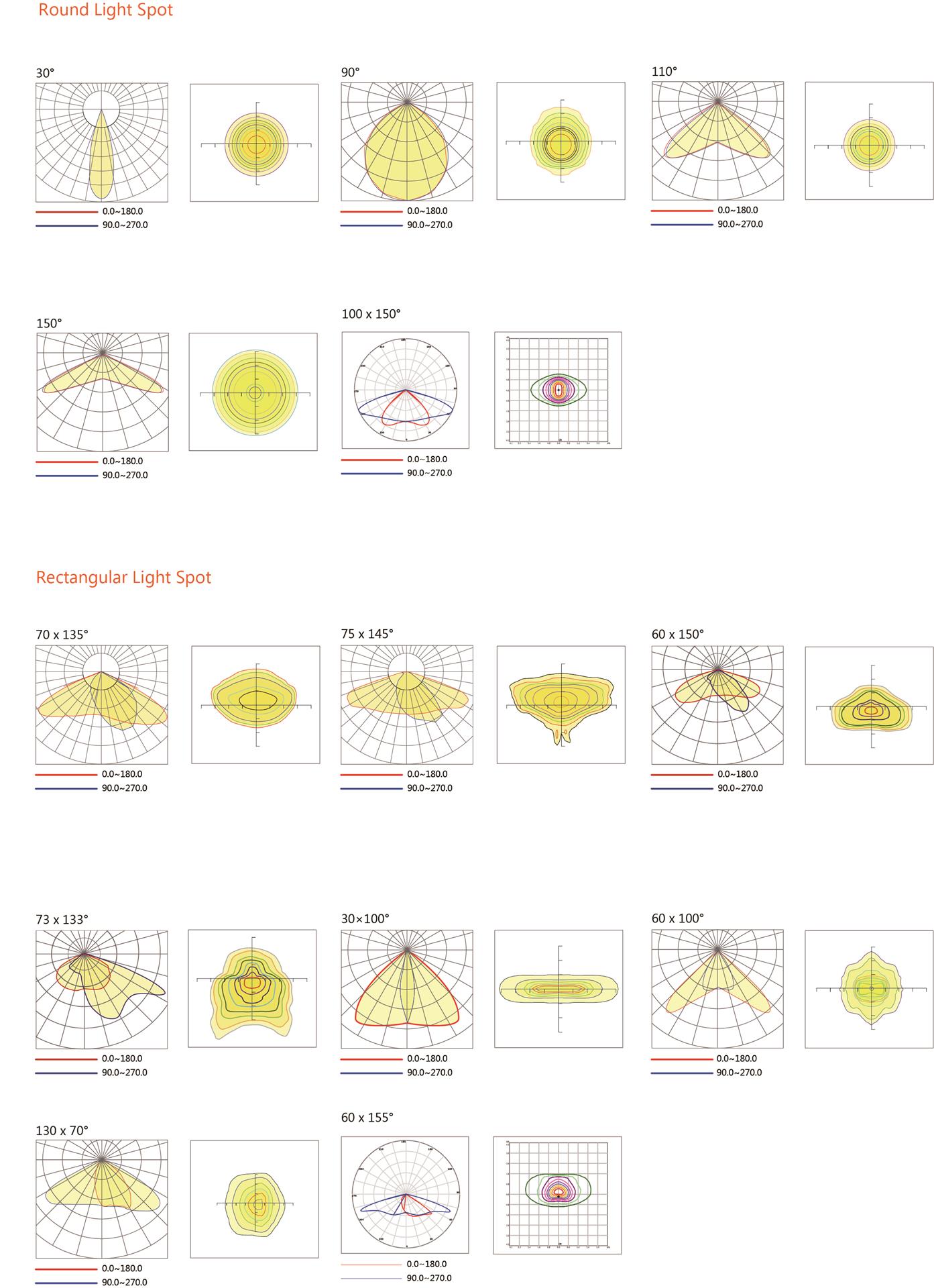

Photometrics

Accessories

LED Chip & CRI

Philips Lumileds / RA>70

Input Voltage

100-277VAC /200-480 VAC

CCT

4500~5500K (2500~5500K Optional)

Beam Angle

30x100° 60x100° 130x70° 70x135° 75x145° 60x150° 73x133° 20° 30° 50° 90° 110° 150°

IP & IK

IP66 / IK10

Driver Brand

Meanwell-HLG / MW-HVG

Power Factor

0.95 minimum

THD

20%Max

Housing

Die-cast Aluminum

Work Temp

-40 to 80°C (-40 to 176°F)

Mount Option

Standard U Bracket(Hang Ring)

Warranty

5 Years Warranty

Certificate

ETL, DLC, CB, CE, RoHS, WEEE, SAA

Model

Power

Efficacy(IES)

Total Lumen

Dimension

Net Weight

EO-ED-50HT80

50W

130LPW

6,500lm

273x366x245mm

5.2kg/11.5lbs

EO-ED-100HT80

100W

130LPW

13,000lm

308x366x245mm

7.8kg/17.2lbs

EO-ED-150HT80

150W

130LPW

19,500lm

402x366x245mm

9.3kg/20.5lbs

EO-ED-200HT80

200W

130LPW

26,000lm

496x366x245mm

10.7kg/23.6lbs

EO-ED-300HT80

300W

130LPW

39,000lm

684x366x245mm

16.5kg/36.4lbs

EO-ED-450HT80

450W

130LPW

58,500lm

966x366x245mm

28.0kg/61.7lbs

FAQ

Q1: How much wattage per module has?

E-LITE: This Edge series is 50 wattage per module, the lamp tops out 450 watts .

Q2: What is the operating temperature range?

E-LITE: Valid over the entire temperature range from 40 to 80°C (-40 to 176°F)

Q3: How many lumens does a High Temp light have?

E-Lite: High Temp Edge Series Area Light system efficacy is 130lm/W, and up to 6500lm for 50W light.

Q4: What is the difference your Led High-Temp Area Light with other lights?

E-LITE: Our Led High-Temp Area Light using the robust material for High strength aluminum housing, equipped the top brand led source to make sure its high system efficacy. 5 years warranty always supported directly from factory.

Q5: ODM or OEM is accepted?

E-LITE: Yes, we can do ODM &OEM, put your logo on the light or package both are available.


  • Previous:
  • Next:

  • Extreme Temp & Cool name says it all. E-Lite Edge Series high-temperature high bay luminaire combines optical performance, energy efficiency, and outstanding versatility to meet the requirements of high temperature lighting applications in high-temperature, dust, corrosive gas environment, delivers a wide range of light outputs that replace 100W-1500W HID / HPS / Metal halide such traditional lighting fixtures. This high temperature LED fixture was designed for Manufacturing facilities, foundries, Steel Mills & other applications that have temps in 80°C/176°F (MAX). The most advanced thermal management system researched and applied ensures its high profile performance in high-temperature applications. No.1 The 6063-T5 extrusion aluminum heat sinks with large heat dissipation area and take the modular LED bars design which provide the highest level of thermal dissipation suitable for such high temperature environment less than 80°C application. No.2 Heavy duty Aluminum driver housing, innovative vertical flow cooling fin design and allows the fixture to perform in harsh, extreme heat environments. No.3 High Heat resistance PC optical lens, the materials of PC3000U resistance 125°C, high transparency and high weatherability no yellow change after 5 years or more, more than 13 different lens for different projects optional. No.4 Top brand Philips LED chip chose with are feel free under 105°C too, no affect its lifespan under 80°C. No.5 Also it equipped the high quality Meanwell power supply unit under its heavy duty housing made it max work temperature reach at 90°C. E-Lite Edge series high temperature high bay light offers 130 lumens/watt and whole family included 50W, 100W, 150W, 200W, 300W, and 450W, total 6 different wattages. And 13 different types LED lenses, wide beam and narrow beam, symmetrical beam and asymmetrical beam, which designed and produced according to the market demands for different lighting applications. Edge series LED lights with multi mount accessories can transform to various luminaires suc…

    ★ Excellent thermal management system for High Ambient Temp 80°C

    ★ Flexible, Modular Design, Corrosion resistant

    ★ Multiple Choice of Optical Lenses - 13 Type more

    ★ Easy Installation & Maintenance

    ★ IP66, IK10, PF>0.95 3G Vibration

    ★ Five Years Warranty

    ★ cETLus, DLC Premium, CE, RoHS, WEEE, SAA

    Replacement Reference Energy Saving Comparison
    EO-ED-50HT80 150Watt Metal Halide or HPS 67% saving
    EO-ED-100HT80 250Watt Metal Halide or HPS 60% saving
    EO-ED-150HT80 400Watt Metal Halide or HPS 63% saving
    EO-ED-200HT80 750Watt Metal Halide or HPS 73% saving
    EO-ED-300HT80 1000Watt Metal Halide or HPS 70% saving
    EO-ED-450HT80 1500Watt Metal Halide or HPS 70% saving

    Edge Series HT High Bay

    Type Mode Description
    HR20 HR20 HangRing20
    UB UB Standard Bracket
    B180 B180 180Degree Bracket
    SFB SFB Surfaced Mount Bracket
