Security First: E-lite Integrated Solar Lighting + CCTV Protection Solution

Security First: E-lite  Integrated Solar Lighting + CCTV Protection Solution

Security is the second fundamental human need, right behind survival. E-lite integrated solar roadway lighting and CCTV system provides comprehensive protection independent of municipal power grids through the synergy of illumination and surveillance:

Personal & Property Safety: Eliminates dark blind spots and electrical shock risks, deters illegal activities, and enhances camera imaging for clear evidence collection.
Equipment & Emergency Safety: Features industrial-grade protection against weather and thermal risks, ensuring continuous lighting and security during natural disasters or grid blackouts.
This smart “lighting-plus-security” combination transforms the abstract pursuit of safety into tangible, reliable protection.

Overall Configuration Logic of Solar Street Lighting + CCTV System
Critical note: Solar Street lights only operate at night, while CCTV cameras run 24/7. Standard solar powered street lamp configurations cannot support continuous camera operation, so solar panels and battery capacity must be upgraded with intelligent energy scheduling enabled.
Two mainstream installation architectures

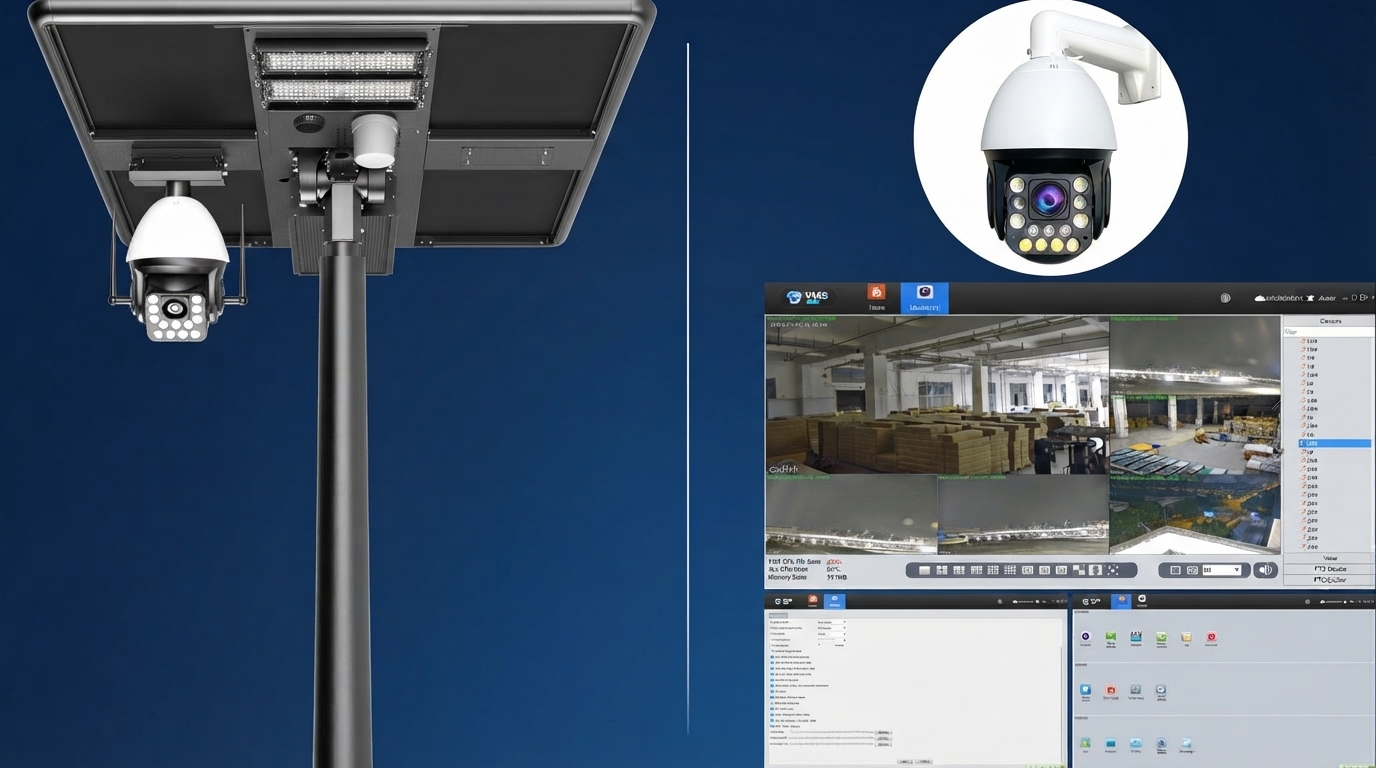

1.All-in-one integrated model
LED light source, MPPT controller, lithium iron phosphate battery and CCTV camera are assembled inside one single lamp housing, fixed on poles with clamps. Pros: simple installation, minimal wiring, ideal for new projects. Cons: higher heat dissipation pressure, thermal performance must be verified for tropical high-temperature regions.
2.Separate retrofit mode
Independent solar power kits are equipped exclusively for CCTV cameras while the original All-in-one solar street light remains unchanged. Pros: two systems draw power separately without energy conflict; maintenance can be done independently, perfect for upgrading existing street lights.

Core configuration specifications
1.CCTV Camera Selection
Minimum 2MP (1080P); 4MP is recommended for municipal projects. Support infrared or full-color night vision. Select 4G-LTE modules for areas without wired internet; adopt IP66+ ingress protection rating. Human motion-triggered recording is strongly recommended instead of nonstop 24-hour recording, which will sharply raise costs of panels and batteries.
2.Power Supply System
12.8V lithium iron phosphate energy storage system. Total load = power consumption of LED lamp + 24-hour power draw of CCTV. Reserve battery capacity for 2–3 consecutive rainy days, plus a 1.3–1.5 safety factor to offset performance loss caused by dust coverage and temperature change. MPPT intelligent controllers dynamically allocate power to guarantee stable camera operation at night when the lamp dims automatically.
3.Structural Supporting Design
Lamp pole height: 6–8 meters. Tilt cameras 15°–30° downward to avoid backlight interference. Reinforce pole wall thickness and clamps to resist strong winds as the all-in-one unit has extra weight. All cable joints adopt IP67 waterproof glue sealing.
Key business reminders
•Clarify recording modes (motion-triggered vs 24/7 continuous recording) with clients, as the two modes have huge cost gaps.
•Local SIM cards and mobile data plans shall be purchased by clients locally; our company only supplies hardware devices.
•For public monitoring sites, clients must comply with local privacy laws and install surveillance warning signs as required.

Three Product Lines of Solar + CCTV by E-lite Semiconductor: Standard Home Version, AI Chip Version, AI Chip + AI Box Version | Advantages & Real Cases

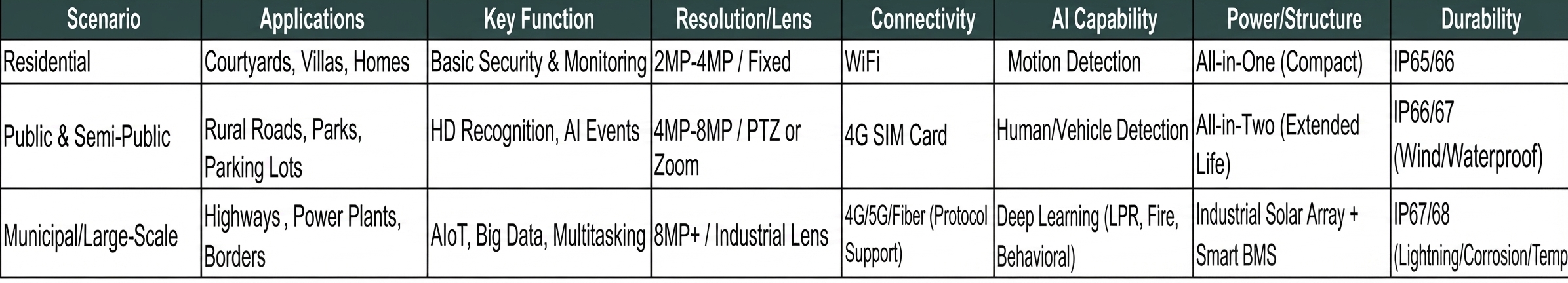

We launch three tiered solutions targeting home yards, small farms, industrial parks and overseas municipal projects to match different budgets and security demands.

1. Standard Home Version (Basic Solar Light + CCTV)

Positioning: Entry-level security for private yards, small farms and rural households with tight budgets, supporting remote viewing and video playback
Core Advantages：All-in-one design for tool-free installation with zero wiring. Basic motion detection alerts and mobile APP remote preview & playback. Lithium iron phosphate battery ensures basic backup power on rainy days. Cost-friendly for individual buyers and bulk retail orders.
Limitations：Only basic video recording; prone to false alarms triggered by swaying leaves and small animals without precise human filtering.
Case Reference：Overseas residential yard renovation project: Replaced wired surveillance systems. No cable trenching required, providing night yard lighting and full video recording to secure private property.

2. CCTV Built-in AI Chip Version

Positioning: Mid-tier commercial & engineering model for overseas village roads, small factories and parking lots, our core foreign trade flagship model
Core Advantages：Dedicated AI chip optimizes noise reduction and night vision clarity greatly. Accurate human shape detection filters false alarms from animals and vegetation. Support 4G/Wi-Fi connection and local TF card storage. MPPT intelligent energy scheduling balances lamp dimming and 24-hour camera power supply. IP67 waterproof & dustproof works well under high temperature, sandstorm and coastal salt fog. Compatible with ONVIF protocol for third-party platform access.
Limitations：Only human detection and alarm push, incapable of advanced AI analysis such as intrusion alert and line-crossing detection.
Case Reference：Rural village road project in Southeast Asia: Upgraded ordinary solar powered street lamps with integrated CCTV. The system illuminates village roads at night and records vehicle & pedestrian movement at the village entrance, effectively reducing livestock theft crimes and cutting construction costs by eliminating cable laying.

3. AI Chip Camera + Independent AI Box (High-end Smart Security Solution)
Positioning: Premium intelligent solution for industrial cold storage perimeters, logistics parks, resettlement zones and smart city pilot projects
Core Advantages：AI chip captures high-definition footage, while the external AI black box serves as independent computing brain. Support perimeter intrusion alert, line-crossing warning, loitering detection, human & vehicle classification, and linked audible & visual alarms. Push real-time abnormal alerts to security staff to shift security mode from post-incident video checking to proactive early warning. Centralized management platform supports mass monitoring points, compatible with new deployment and old AI chip camera upgrades.
Limitations：Higher overall cost, oriented for government institutes and large engineering contractors.
Case Reference：Overseas cold storage logistics park perimeter project: Deployed integrated solar lighting + CCTV + AI box solution. The lights illuminate the whole yard after dark, and the system sends instant alerts once strangers break into the perimeter fence, greatly strengthening the cold storage cargo security system.

Closing
Security is an innate core demand of human beings, which no longer relies solely on manual patrols.
Ordinary solar lights resolve safety risks caused by darkness; basic solar lighting + CCTV systems deliver lighting plus video evidence collection; AI chip models improve imaging quality and reduce false alarms; paired with an AI black box, the system upgrades to intelligent identification and proactive warnings.
With three tiered product lines covering household and large engineering scenarios, E-lite Semiconductor turns the abstract demand for safety under Maslow’s theory into deployable, off-grid, easy-install hardware solutions, satisfying differentiated security needs for individual families, engineering contractors and municipal clients worldwide.
