PhotonGroTM 2 - LED Grow Light
-
-
|
Spectrum |
Full Spectrum Indoor |
|
AC Input Power |
600W/800W/1000W @ 277V AC |
|
AC Input Voltage |
120-277V AC, 50/60Hz |
|
Power Per Module |
100W |
|
Light Distribution |
120° |
|
Work Temperature |
-40 to 45°C/-40 to 113°F |
|
Dimming |
0-10V |
|
THD |
< 10% |
|
Lifetime |
L90: > 36,000hrs |
|
IP |
IP66 |
|
Mount Option |
Hanging Bracket/Chain Mount |
|
Warranty |
5 Year Standard Warranty |
|
Certificate |
ETL,DLC (Pending) |
|
Model |
Power |
PPF |
PPE |
PPFD @ 6" PPFD @ 12" |
Dimension(mm) |
Fixture Weigh with Driver |
|
EL-PG2-600W |
600W |
1530 µmol/s |
2.55 |
1017umol/J/m2 826umol/J/m2 |
1100*1100*52 |
12KG |
|
1620 µmol/s |
2.7 |
1080umol/J/m2 880umol/J/m2 |
||||
|
EL-PG2-800W |
800W |
1976 µmol/s |
2.55 |
1313umol/J/m2 1067umol/J/m2 |
13.5KG |
|
|
2093 µmol/s |
2.7 |
1395umol/J/m2 1136umol/J/m2 |
||||
|
EL-PG2-1000W |
1000W |
2550 µmol/s |
2.55 |
1694umol/J/m2 1377umol/J/m2 |
16KG |
|
|
2700 µmol/s |
2.7 |
1841umol/J/m2 1495umol/J/m2 |
FAQ
E-lite: Yes, we can private label for you, please share your design files or profiles with us.
E-lite: We have supporting manufacturer specializing in plant lighting controllers, but the controller is sold separately. lt can adjust the light time and intensity, if you want we can provide the details information of the controller.
E-lite: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
E-lite: There are more cases of commercial large-scale planting, but it can also be used in a larger size plant tent.
E-lite: We understand the higher shipping cost in international business is INEVITABLE, but trust me your future profit by using or selling these goods will make your BENEFITS WAY OVER this cost.
E-lite:
1. The LED surface and heat sink could be hot at some point, please let it cool down a little before using.
2. To prevent eyes injury, please do not look directly at the unshielded LED or stare at the light for long cause is BRIGHT, we suggest you wear sunglasses under the light.
3. To reduce the possibility of serious injury. Make sure to take appropriate precautions and unplug the power cord before moving or cleaning
LED Grow Lights are specially used for plant growth, which simulate the principle that plants need sunlight for photosynthesis, to supplement light to plants or completely replace sunlight. The light source of LED grow light is mainly composed of red and blue light that is just consistent with the spectral range of plant light synthesis and light morphology. Nowadays, LED plant lights currently purchased in the market are large in size, however Elite’s foldable grow lights can avoid the problem of the internal parts of the plant lights are complicated, making them more ornamental, and greatly promote the functionality and efficiency of the lights. The space utilization rate is increased by 35%, realizing low heat load and miniaturization of production space.

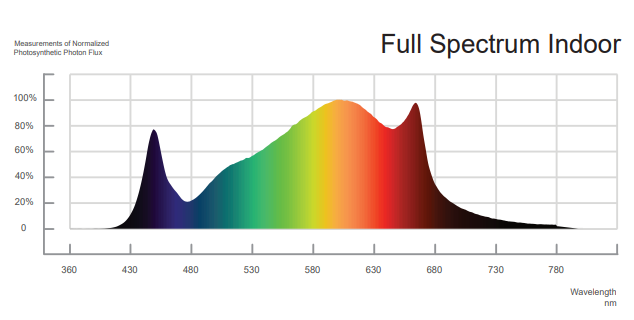

The most sensitive light band of plants is adopted in the full spectrum grow lights. The red light wavelength is 620-630nm and 640-660nm, and the blue light wavelength is 450-460nm and 460-470nm, to making plants get the best growth state. Thus, Elite LED grow lights have the characteristics of high efficiency, energy saving, and long life. In specific, plant lights can enhance seedling quality, improve high-quality seedling rate, shorten seedling rising cycle and reduce energy consumption cost, so that the life span is increased by 10 times with electricity saving 69.7%.
Octopus and folding type grow lights are basically have the same usage scenarios, they are mostly used for commercial large-scale and multi-layer structure plantings, but the main difference is that the latter is foldable. Folding LED grow lights of Elite have three mounting options, which is much more convenient to install.
Elite’s grow lights standard nameplate is pasted, and the factory has a laser engraving machine for custom engraving. In addition it can supply power cords, plugs and lanyards in factory standard lengths of 0.5m, and can be increased upon request.
The suggested hanging height of the lamp is 6 to 12 inches between the plant and the light-emitting surface of the lamp obtaining the best PPFD collection range. Furthermore, it is recommended to use the lights for 14-24 hours during the growing season and 12-16 hours when the plants are blooming.
★ Full Spectrum Indoor Grow Light
★ Input Voltage: 100-277V (0-10V Dim)
★ 120° / IP66 / THD<10%
★ Lifetime L90: >36,000Hrs
★ Max. Ambient Temp:-40 to 45°C/-40 to 113°F
★ Mounting Height:6″-12″/15.2-30.5cm Above Canopy
★ Mounting Kits: Hanging Bracket/Chain Mount
★ ETL DLC Pending / 5 Years Warranty
