New Edge^TM Modular Flood & High Mast Light

•
•
•
•
•
•

E-Lite New Edge Flood lighting and controls allow an unprecedented level of precision control over lighting in stadiums, creating dynamic effects that build a sense of theatre before, during and after a game. Better, smarter lighting benefits players, fans and broadcasters, with better quality illumination and visual comfort, glare control, great clarity and colour for high-definition broadcasting, no flicker in slow-motion replays, and the ability to enhance the overall experience for spectators.

In order to achieve the above performance, technology department team of E-Lite Company has studied flood lighting for many years since 2008. Nowadays, excellent efficiency lumileds 5050 LEDs package get 165 lumens per watt for system efficacy- 5000K bright white – replacing 2000W even 3000W HID metal halide or HPS, saving money and replacing bulbs with 150,000 hour rated LEDs. Depending on the application conditions or requirements, different power supplies can be used to drive the LED arrays. LED flood lighting virtually eliminates the constant maintenance of some luminaires and maintains brightness for up to 150,000 hours, even when operating 12-24 hours per day.

High power and high lumen 120 to 1200W luminaire fittings can be used not only in the flood arenas, but also in outdoor arena and stadium & general flood lighting. BEST-IN-CLASS LIGHT QUALITY for lighting, from horizontal for reduced obtrusive light. Optical flexibility and modular construction enabling various combinations minimize the number of luminaires and optimize the windage to achieve the optimal lighting effect.

The luminous efficiency of E-lite New Edge Series lighting is up to 165lm / W. Compared with the traditional HID lighting source, the energy consumption is reduced by at least 52%, which significantly reduces the power cost and carbon emission. It is a green, energy-saving and environmental protection product.

The lamp body is made of Aluminum Alloy with high corrosion resistance, which is anodized, and the surface of corrosion-resistant polyester powder is treated with 1000 hours of salt spray. Modular radiator solution, easy to replace and maintain, high temperature resistant pc-3000u optical lens, anti glare control, will not turn yellow after 10 years. Corrosion resistant 304 stainless steel mounting hardware. The operating temperature range is – 40 ° f to + 122 ° f (- 40 ° C to + 50 ° C). Ensure better thermal management in each location and all work ranges.

★ System Light Efficacy 160~165 LPW.

★ Ultra Bright, Up to 192,000Lm.

★ Flexible, Modular Design.

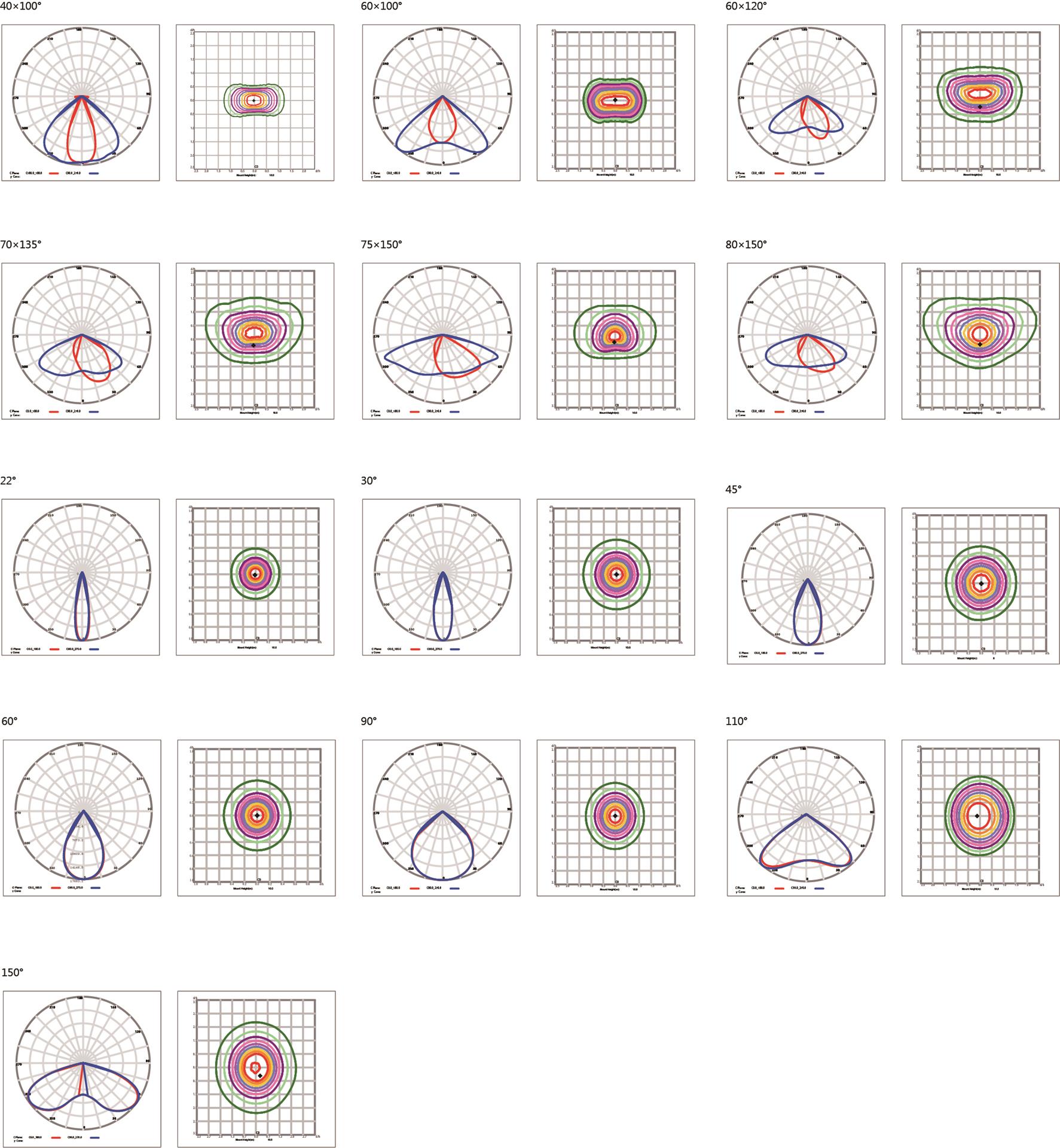

★ Multiple Choice of Optical Lenses.

★ Easy Installation & Maintenance

★ 5 years warranty, up to 150,000 hours long life

★ ETL DLC5.1 CB CE RoHS 5G IK10 Salt fog 1000hrs
