IonTM Flood & Area Light
-
-
-
-
| Parameters | |
| LED Chips | Lumileds 3030 / Ra>70 |
| Input Voltage | AC100-277V Or 277-480V |
| Color Temperature | 3000 / 4000 / 5000K / 6000K |

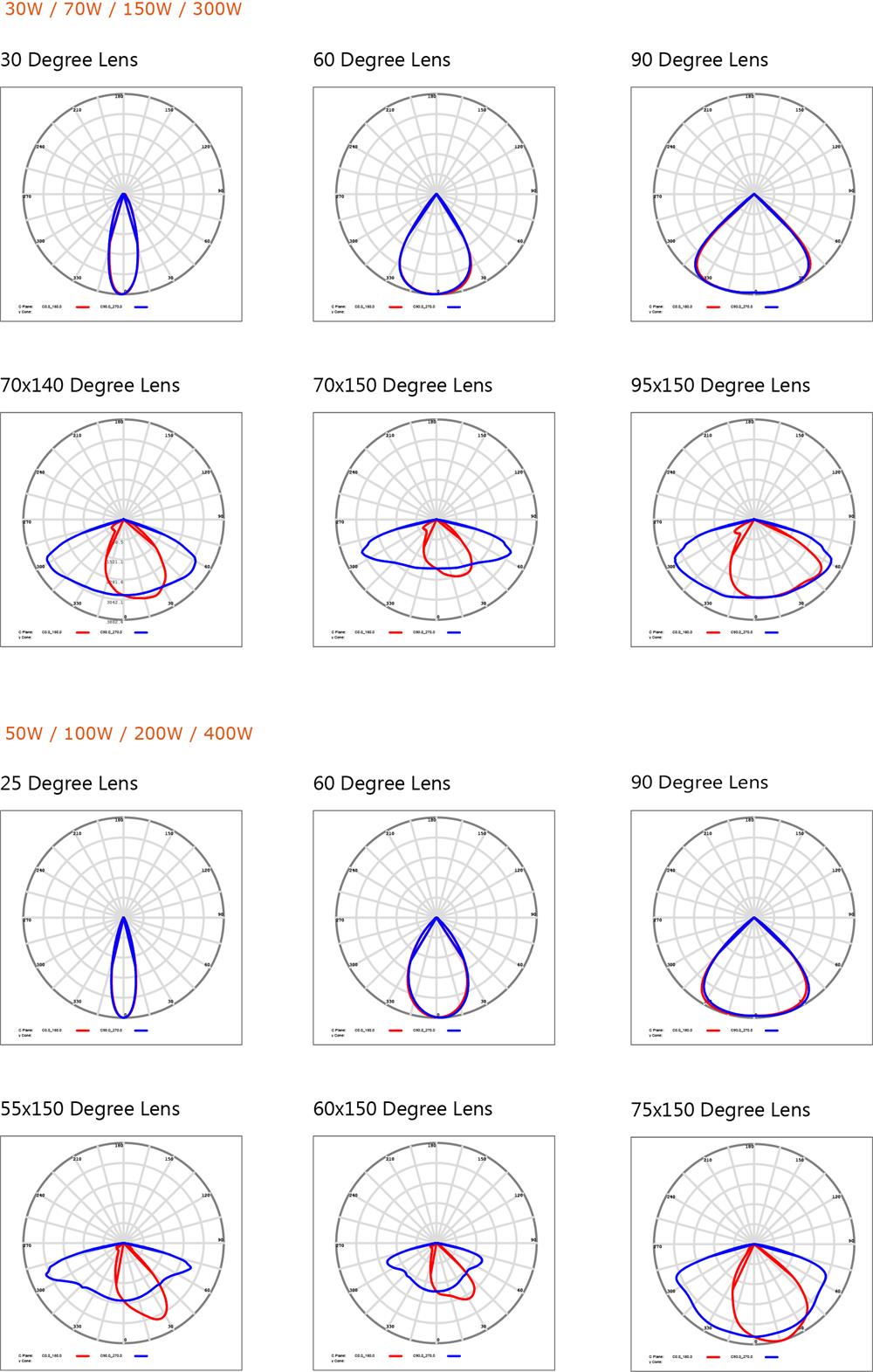

| Beam Angle | 25°/30°/60°/90°/70x140°/70x150°/95x150°/55x150°/60x150°/75x150° |
| IP & IK | IP66 / IK10 |
| Driver Brand | Sosen Driver |
| Power Factor | 0.95 minimum |
| THD | 20% Max |
| Dimming / Control | 1-10V Dimmable |
| Housing Material | Die-cast Aluminum(Gray) |
| Work Temperature | -30°C ~ 50°C / -22°F~ 122°F |
| Mount Kits Option | U Bracket |
|
Model |
Power |
Efficacy (IES) |
Lumens |
Dimension |
Net Weight |
|
EL-ARIN-30 |
30W |
132LPW |
3,960lm |
320×224×50mm |
3.5kg / 7.7lbs |
|
EL-ARIN-50 |
50W |
129LPW |
6,450lm |
320×224×50mm |
3.5kg / 7.7lbs |
|
EL-ARIN-70 |
70W |
130LPW |
9,310lm |
421×291×62mm |
5.2kg / 11.5lbs |
|
EL-ARIN-100 |
100W |
132LPW |
13,200lm |
421×291×62mm |
5.2kg / 11.5lbs |
|
EL-ARIN-150 |
150W |
130LPW |
19,500lm |
520×342×65mm |
12.2kg / 26.9lbs |
|
EL-ARIN-200 |
200W |
130LPW |
26,000lm |
520×342×65mm |
12.2kg / 26.9lbs |
|
EL-ARIN-240 |
240W |
130LPW |
31,200lm |
520×342×65mm |
12.2kg / 26.9lbs |
FAQ
E-LITE: LED flood lights are lights that are highly powered and can be used to light large areas during low light conditions.
E-LITE: Adjustable lighting beam angle.
Resistant to shock or vibration.
Good performance for Lighting.
Long lifespan reduces maintenance, making them a good choice for difficult-to reach areas.
E-LITE: Stadiums/Sports fields/Streets/Driveways/Parking lots/Indoor and outdoor arenas/Warehouses/Yard/
Many other large areas
E-LITE: Yes, we’re a LED lighting manufacturer in China for more than 15 years.
E-Lite Ion LED floodlights are wide angle lights designed to cover a large area or “flood” area with light, which are a cost-effective alternative to traditional halogen bulbs and can be used in commercial and industrial environments. The Ion LED flood light for site and large area applications often provide a very evenly distributed light pattern. LEDs are available in a range of color temperatures, which can provide a range of options to increase the visual perception of “brightness”.
The main advantages of E-Lite Ion floodlights in the application are their lower power consumption, longer lifespan, instant start-up and streamline design. They can replace many metal halide floodlights, halogen and electrodeless induction floodlights also exist with more than 70% energy saved. The functional life (often in excess of 100,000 hours) of an LED flood light can be significantly longer than that of a HID Lamp, which in turn drastically reduces the costs for maintaining exterior light fixtures over a longer period of time.
The Ion LED flood lights come in different beam angles and powers, which can be suited to different needs and requirements. From the lighting of large stadiums and parks to lighting up your own lawn, they are very helpful and effective. They are the right choice when choosing a light for your yard, business, parking lot, warehouse and more. Ion LED flood lights are also often used for security and at other times for illuminating advertisements such as billboards.
Photometric is very helpful in determining lighting for large commercial projects. It will help determine brightness, intensity and evenness of light over a property. We can supply the photometric solution with Ion LED floodlights according to your projects condition and requirements.
Durable one-piece die-casting, IP66 rate design and powder coated housing make this flood light can be operated safely in wet location and withstand the harsh, extreme outdoor conditions and corrosive environments.
E-Lite Ion LED flood light can be used as stadiums, sports fields lighting, street lighting, parking lots lighting and many other large areas flood lightings.
★ System light efficacy 130 LPW.
★ Rugged one-piece die-cast Housing.
★ 5 Years warranty.
★ IP66 rated, are suitable for wet and harsh location.
★ Power factor>0.95, and THD<20%.
★ CE and RoHS certification.
★ Multi-lens meets different lighting demands.
| Replacement Reference | Energy Saving Comparison | |
| 30W ION FLOOD LIGHT | 75 Watt Metal Halide or HPS | 60% saving |
| 50W ION FLOOD LIGHT | 150 Watt Metal Halide or HPS | 66.7% saving |
| 70W ION FLOOD LIGHT | 200 Watt Metal Halide or HPS | 65% saving |
| 100W ION FLOOD LIGHT | 250 Watt Metal Halide or HPS | 60% saving |
| 150W ION FLOOD LIGHT | 400 Watt Metal Halide or HPS | 62.5% saving |
| 200W ION FLOOD LIGHT | 600 Watt Metal Halide or HPS | 66.7% saving |
| 240W ION FLOOD LIGHT | 750 Watt Metal Halide or HPS | 66.7% saving |
| Type | Mode | Description |
 |
UB | U bracketr |
